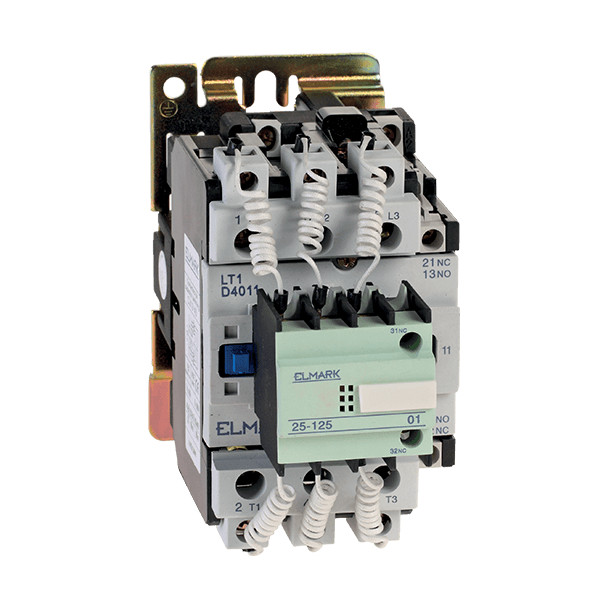

ELMARK kontaktor, CJ19-40 DPK, 40A, 400V

<p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of CJ19-43:</strong><br />- Rated current: 32-170A<br />- Operation class: AC6<br />- Insulation voltage: 690V<br />- Rated operating voltage of the coil: 230V АC;50/60Hz<br />- Surge voltage wear resistance: >8000V<br />- Electrical wear resistance (number of cycles): ≥300000<br />- Mechanical wear resistance (number of cycles): ≥1000000<br />- Number of cycles (switching on) per hour: up to 600<br />- Number of the contacts :3 NO power contacts + 1 NO operative<br />- Leaking power: up to 13W<br />- Operating temperature: -10 to 65ºС<br />- Maximum altitude: 2000м</p>n<p><strong>Advantages:</strong><br />- Material: resistant to UV rays, self-extinguishing<br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Secure part of the contactor against contact with the consumer<br />- Manual switching on is not available</p>n<p><strong>Functions:</strong><br />- Switching on/off of capacitors for reactive energy compensation <br />- Developing of systems for compensation of reactive energy <br />- Lowering of peak transitional currents at switching on and switching off the capacitors</p>n<p><strong>Applications:</strong><br />- Industry<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p>
