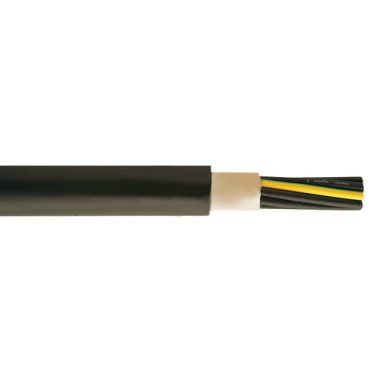

NYY-J 4x4mm2 ground cable, PVC RE 0,6/1kV black

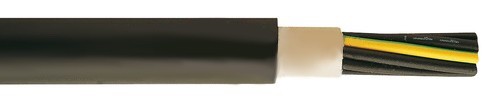

The picture is an illustration!
In the case of the above cable / wire type, a cutting cost of 3000ft + VAT may be incurred, the cost of which may vary depending on the quantity and type of product ordered!

Application:
Indoors and outdoors, in cable ducts, fixed on walls and metal structures, or laid directly in the ground.
Mainly in public distribution networks, power plants, industrial plants and switchgear, if the cable is not exposed to mechanical damage during use.

Structure:
- copper conductor, bare, solid (RE) or twisted (RM / SM)
- PVC wire insulation
- PVC filling coat or bandage
- PVC outer coat, black (UV resistant)

Information:
short-circuit temperature at the driver (max. 5 s.)
<= 300mm² -> 160 ° C
> 300mm² -> 140 ° C

Standards:
DIN VDE 0276-603
HD 603 S1: 1994 + A2: 2003
DIN EN 60228 Classes 1 and 2 (conductor construction)
HD 308 S2 (marking of wires)

Specifications:
Rated voltage Uo / U [V] 600/1000 volts
Test voltage [V] AC 4000
Operating temperature moved [min / max] -5 ° C / + 70 ° C
Operating temperature fixed [min / max] -20 ° C / + 70 ° C
Bending radius simple design x outer diameter 15
Bending radius multi-version x outer diameter 12
Combustion property standard EN 60332-1-2
