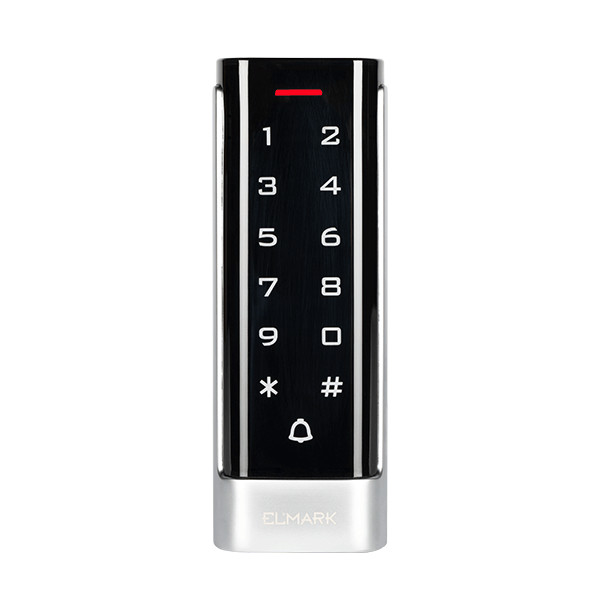

ELMARK 195094 EL-T1101 RFID FÉM HAZA JÁRATVEZÉRL 125KHz IP65

<p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p><p>RFID unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in silver. The electronics are fully defended. This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection,Wiegand output,and a back light keypad. These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and etc.<br />FEATURES<br />• Metal case, anti-vandal<br />• Waterproof<br />• Digital back light touch keypad<br />• Multi-function standalone access controller and reader<br />• WG interface: WG26 Input / output<br />• Capacity: 2000 cards / codes<br />• Three accesses: card, pin, card + pin<br />TECHNICAL DATA<br />• Type: Touch screen standalone access controller<br />• Model: EL-T1101<br />• Working frequency: 125KHz<br />• Card type: EM<br />• Capacity: 2000 users<br />• Card reading distance: 2-5cm<br />• Working voltage: 12-24V DC<br />• Static Electricity: ≤35mA<br />• Electric Lock Output: ≤1A<br />• Short-Circuit Protect: ≤100μS<br />• Relay Output Delay Time: 0-99 s<br />• IP code: IP65<br />• Working temperature: from -40°C to 60°C<br />• Humidity: 90% RH <br />• Add card method: via computer<br />• External device port: electric lock (including relay output and level output)<br />• Dimensions (HxL): 135x48mm</p>
