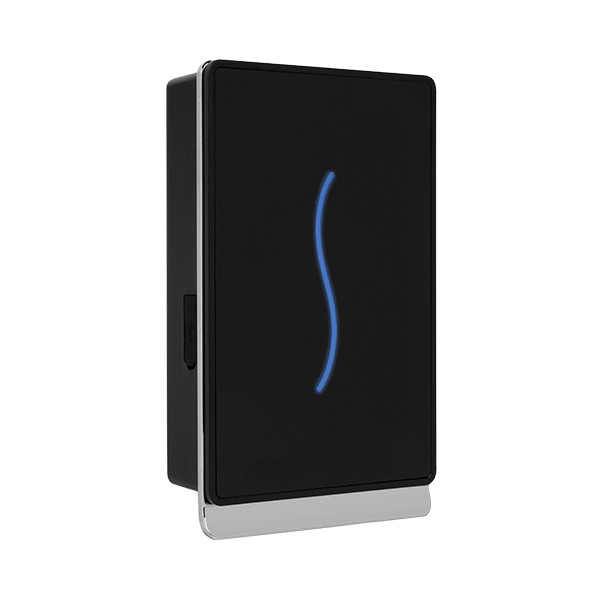

ELMARK 195097 EL-SCR100 IP RFID ACCESS CONTROLLER READER 125KHz

<p>EL-SCR100 is an access control devices, which is made with elegant design. The device have lock control, alarm, exit button, door sensor. The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user data and record etc.<br />EL-SCR100 is suitable for house, small office, factory etc<br />FEATURES<br />• Elegant design with Acrylic plastic<br />• With TCP/IP interface, avoid RS485 communication and low speed for transferring data, standalone or network deployment<br />• Professional access control function: 50 time zones, 5 groups, 10 open door combination, support multi users entry<br />• Protect the data with encrypted technology<br />• Built-in relay contacts lock, alarm, door sensor and exit button<br />• Wiegand input and output enable Master/Slaver access control<br />• Embedded webserver: support browser to inquire access data at local or remote.<br />TECHNICAL DATA<br />• Type: Standalone proximity controller for access control and time attendance<br />• Model: EL-SCR100<br />• Working frequency: 125KHz<br />• Access control Interface: 3rd party electric lock, door sensor, exit button, alarm, door bell<br />• Standard function: Anti-passback, webserver, 9 digital number<br />• Card type: EM (RFID)<br />• Card capacity: 30000<br />• Card reading distance: 5-10cm<br />• Transaction capacity: 50000<br />• Working voltage: 12V DC<br />• Static current: 300mA<br />• Wiegand signal: input and output<br />• Communication: TCP/IP, RS232/485, USBHost<br />• Working temperature: from 0°C to 45°C<br />• Humidity: 20-80% RH (non-condensing)<br />• Material: Acrylic plastic<br />• Dimensions (LxHxD): 95.5x153x35.5mm</p>
