ELMARK 820004 H03VVH2-F 2x0,50mm2 kábel FEHÉR

ELMARK 820004 H03VVH2-F 2x0,50mm2 kábel FEHÉR
Energiaosztály 2023-
Prezzo consigliato: 0,42 €
0,25 €
Díjmentes szállítás!
m Aggiungi al carrello Aggiungi al carrello
RAKTÁRKÉSZLET FEJLESZTÉS ALATT



ELMARK elektronikai katalógus 2026 1.rész



ELMARK elektronikai katalógus 2026 2.rész



ELMARK világítástechnikai katalógus 2026 1.rész



ELMARK világítástechnikai katalógus 2026 2.rész



ELMARK elektronikai katalógus 2025



ELMARK világítástechnikai katalógus 2025

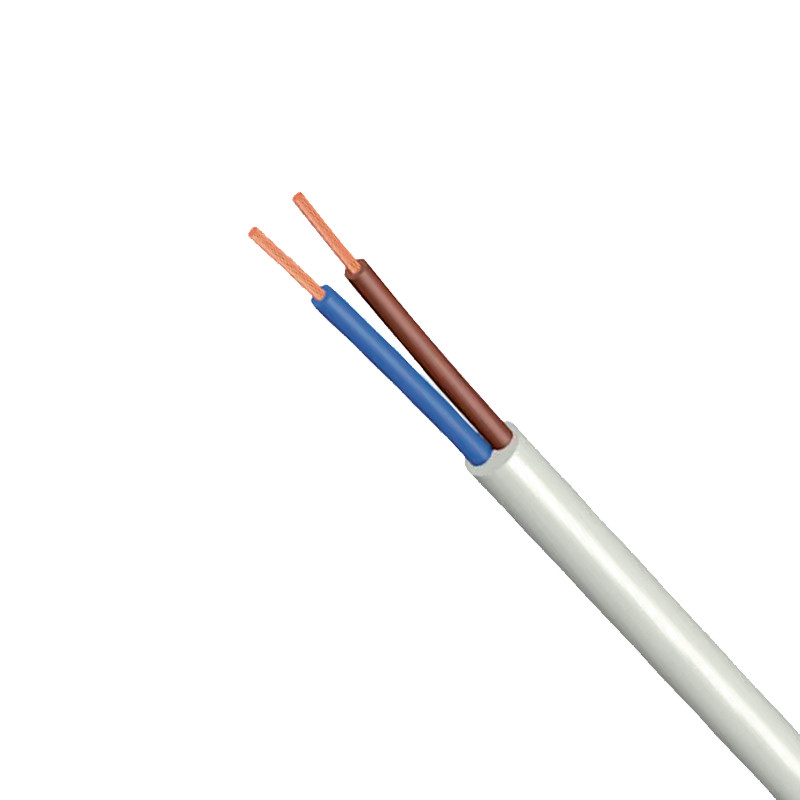

A kép illusztráció!


Alkalmazás:
Száraz helyen, mozgatható fogyasztók csatlakoztatására, nagyon kis mechanikai igénybevételre, mint pl. rádiók, világítási eszközök, kivéve hősugárzók.

Felépítése:
- rézvezető, csupasz elemi szálakból sodrott
- PVC érszigetelés
- PVC külső köpeny

Szabványok:
DIN VDE 0281-5
HD 21.5 S3 +A1+A2
DIN EN 60228 5. osztály (vezető felépítése)
HD 308 S2 (ér jelölése)

Műszaki adatok:
Névleges feszültség Uo/U [V] 300 / 300 Volt
Vizsgálófeszültség [V]AC 2000
Működési hőmérséklet mozgatva [min/max] -5°C / +70°C
Üzemi hőmérséklet rövidzár esetén [°C] 150
Rövidzárlati idő max. [s] 5
Hajlítási sugár min. x külső átmérő 6
Égési tulajdonság szabvány EN 60332-1-2

ELMARK 820004 H03VVH2-F 2x0,50mm2 kábel fehér általános leírása:

Mi a vezeték?
A vezeték egy olyan anyagból készült, általában hosszúkás alakú eszköz, amely elektromos áramot képes vezetni. A vezetők legfontosabb feladata, hogy az elektromos energiát az energiaforrástól a fogyasztóig biztonságosan eljuttassák.



A vezetők felépítése:
* Vezető anyag: Általában fémekből készülnek, mint például réz, alumínium vagy acél. Ezek az anyagok jól vezetik az elektromos áramot.
* Szigetelés: A vezető anyagot szigetelő anyag borítja, amely megakadályozza a rövidzárlatokat és az áramütés veszélyét. A szigetelés anyaga lehet például PVC, gumi vagy teflon.



A vezetők típusai:
* Egyenes vezetők: Egyszerű, egyenes alakú vezetékek, amelyeket általában belső vezetékezéshez használnak.
* Kábelek: Több, egymástól szigetelt vezetőt tartalmazó köteg. A kábelek gyakran árnyékolással is rendelkeznek, amely védi a vezetéket a külső elektromágneses zavaroktól.
* Buszvezetők: Nagy keresztmetszetű, merev vezetők, amelyek nagy áramok vezetésére alkalmasak.
* Levegővezetékek: Nyitott térben, oszlopokra felfüggesztett vezetők.
* Földelővezetők: A berendezéseket és a villanyhálózatot a földdel összekötő vezetők.



A vezetők jellemzői:
* Ellenállás: Az elektromos áram áramlásának ellenállása. Minél nagyobb az ellenállás, annál nagyobb feszültségre van szükség azonos áram eléréséhez.
* Vezetőképesség: Az ellenállás reciproka. Minél nagyobb a vezetőképesség, annál könnyebben áramlik az elektromos áram.
* Kereszmetszet: A vezető keresztmetszete határozza meg az áramvezetési képességét. Minél nagyobb a keresztmetszet, annál nagyobb áramot képes vezetni.
* Szigetelés vastagsága: A szigetelés vastagsága határozza meg a vezető feszültségtűrő képességét.



A vezetők alkalmazási területei:
* Épületvillamosság: Belső vezetékezés, világítás, elektromos készülékek csatlakoztatása.
* Ipar: Gépek, berendezések táplálása, vezérlés.
* Közlekedés: Villamosok, trolibuszok, elektromos autók.
* Telekommunikáció: Telefon-, internet- és adatátvitel.



A vezetők kiválasztásánál figyelembe veendő tényezők:
* Áramterhelhetőség: A vezetőnek el kell bírnia a rajta folyó áramot.
* Feszültségtűrő képesség: A vezetőnek ellen kell állnia a rákapcsolt feszültségnek.
* Környezeti hatások: A vezetőt olyan anyagból kell készíteni, amely ellenáll a környezeti hatásoknak (hő, nedvesség, vegyszerek).
* Mechanikai igénybevétel: A vezetőnek ellen kell állnia a mechanikai igénybevételnek (hajlítás, húzás).



Fontos tudni:
* A vezetőket mindig a vonatkozó szabványoknak megfelelően kell kiválasztani és telepíteni.
* Az elektromos munkákat szakemberre kell bízni.
* A hibásan telepített vagy sérült vezetékek tűz- és áramütés veszélyét hordozhatják.
Ha szeretne többet megtudni a vezetékekről, érdemes szakkönyveket vagy szakembereket felkeresni.



További információért keressen minket bizalommal: info@gazdafielectronic.hu
Dettagli Prodotti correlati Dati Recensioni
  • <p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - Flexing installation: 15D <br /> - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p><p>Designed for connecting of electrical appliances, mobile<br />consumers and devices to electrical network.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 5099-79<br />- Rated voltage: U0/U - 300/300V<br />- Test voltage: 2000V<br />- Insulation resistance at 60°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +60°C<br />- Maximum conductor temperature at short circuit for 5 sec: +150°C<br />- Ambient temperature:<br />   - Flexing installation: -5°C to +50°C <br />   - Static installation: -30°C to +50°C <br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br />   - Flexing installation: 15D <br />   - Static installation: 4D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray (or any colour on customer request)</p>n<p><strong>Construction:</strong><br />- Stranded Copper wires <br />- Flexibility class: 5 and 6 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC</p>
