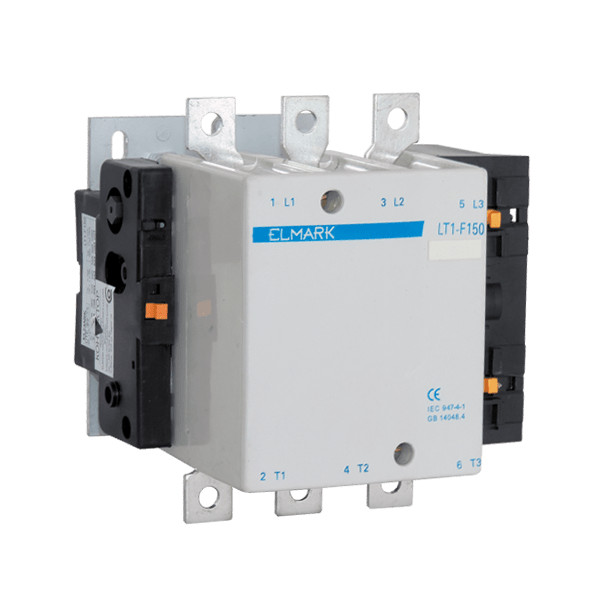

ELMARK kontaktor, 115A, 110V, 1Z

<p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p><p><strong>Technical characteristics:</strong><br />- Operation class: АС3<br />- Rated operating voltage of power contactors: up to 1000V;50/60Hz <br />- Rated current: 115-800А<br />- Surge voltage wear resistance: >8000V<br />- Rated operating voltage of the coil: 12/24/36/48/110/230/400<br />- Electrical wear resistance (number of cycles): ≥10000000<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Number of cycles (switching on) per hour: 200<br />- Power dissipation per pole: from 16 to 80W<br />- Ambient temperature: -10º ÷65ºС<br />- Maximum altitude: up to 2000м</p>n<p><strong>Advantages:</strong><br />- High reliability of the current parameters<br />- Secure separation of the power contacts<br />- Resistant to UV rays <br />- Easy mounting<br />- Long life</p>n<p><strong>Functions:</strong> <br />- Frequently switching ON/OFF of electrical circuits under load<br />- Developing of systems for control of consumers <br />- Operational element in control boards<br />- Protection of loads and electrical devices in production and exploitation<br />- Control of motors in normal or heavy operating environments</p>n<p><strong>Applications:</strong><br />- Industry<br />- Building construction<br />- Administrative and public buildings</p>n<p><br /><strong>Mounting:</strong> On a DIN rail or using screws to a flat surface in a vertical position with maximum incline of ±5°</p>n<p><strong>Standards:</strong> EN60947-1; EN60947-4-1; EMC</p>
