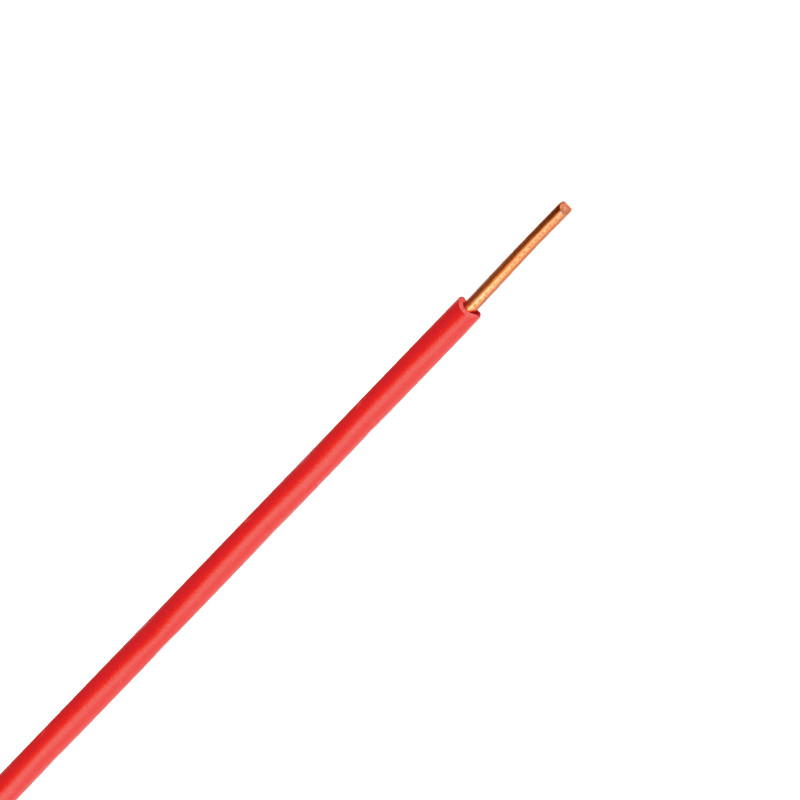

ELMARK 822003 H05V-U 1mm2 kábel

<p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br />   - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br />   - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br />   - H05V-U from 0.50mm² to 1.00mm²: 2000V<br />   - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br />   - For diameters up to 10mm - 10D <br />   - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p>
