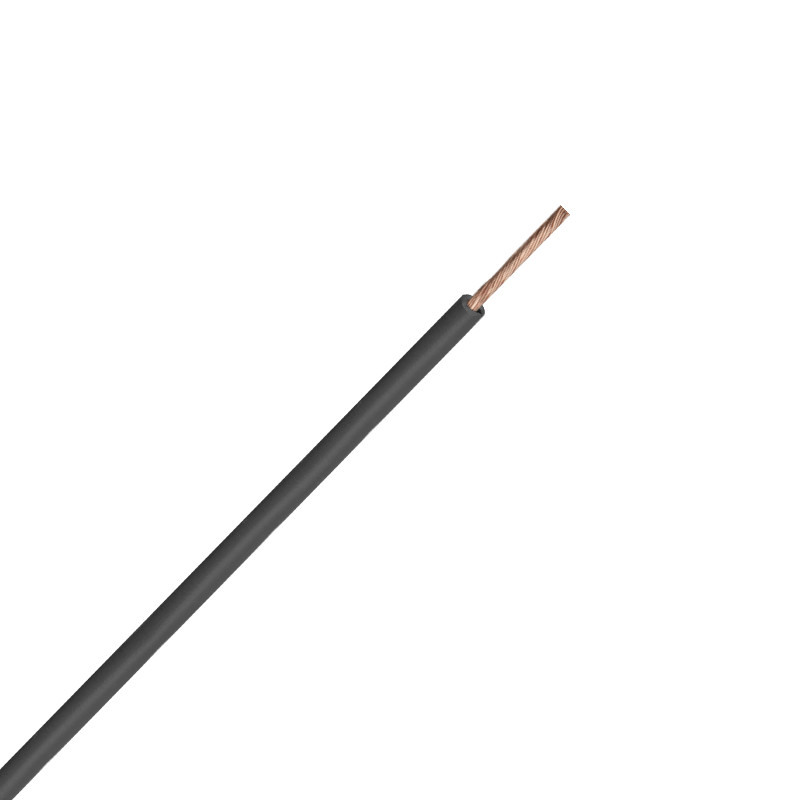

ELMARK 823004 H05V-K 1mm2 kábel

<p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br />   - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br />   - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br />   - Cross-section from 0.20mm² to 1.00mm²: 2000V<br />   - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br />   - Flexing installation: -5°C to +50°C <br />   - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br />   - For diameters up to 10mm - 10D <br />   - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br />   - Cross-section up to 50mm² - class 5 according to BDS 904-84<br />   - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p>
