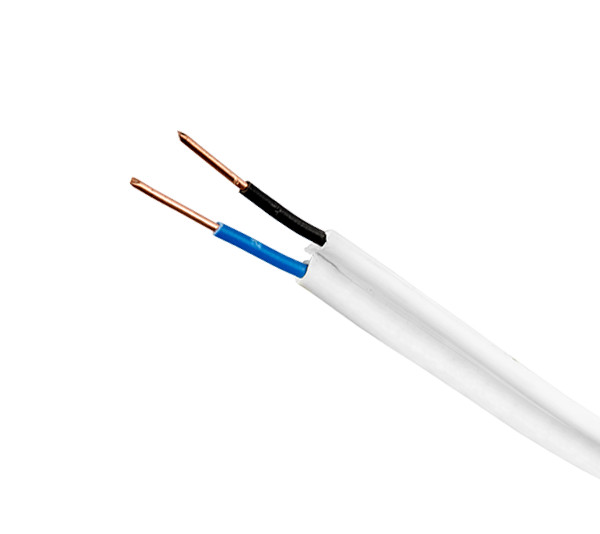

ELMARK 834001 NYIFY-O/J 2x1,00mm2 kábel fehér

<p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p><p>For fixed installation in and above plaster in lighting or power networks.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0250, part 201<br />- Rated voltage: U0/U - 220/380V<br />- Test voltage: 2000V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br />   - For diameters up to 10mm - 10D <br />   - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: white, gray or black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC<br />- Sheath: PVC<br />- Parallelly laid wires - flat with bridge</p>n<p><strong>Core identification:</strong><br />- Two-wire: black, blue<br />- Three-core: black, blue, brown or yellow-green, black, blue</p>
