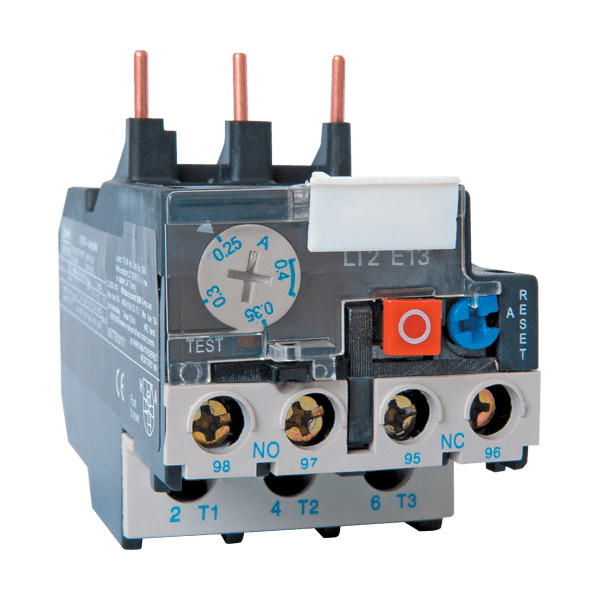

ELMARK Hkioldó LT1-D9 - LT1-D25 típusú kontaktorokhoz, 0,10-0,16A

<p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p><p><strong>Technical characteristics of LT2-E:</strong><br />- Rated operating current: 0,10 up to 93А<br />- Rated operating voltage : up to 690V АС;50/60Hz<br />- Insulation voltage: >690V<br />- Impulse voltage withstand: 6000V<br />- Mechanical wear resistance (number of cycles): ≥10000000<br />- Electrical wear resistance (number of cycles): ≥1000000<br />- Ambient temperature: -10° to 65ºС<br />- Maximum altitude: up to 2000m</p>n<p><strong>Advantages:</strong><br />- Indication for protection activating<br />- Choice of protection restoration method<br />- Allows adjustment of the operation range<br />- Allows operation at higher frequency<br />- High reliability of the current parameters<br />- Increase the effectiveness and prolongs the term of operation.</p>n<p><strong>Functions:</strong><br />- For protection of induction motors from overload or overheat<br />- To prevent the motor from operation at unusual temperature conditions</p>n<p><strong>Applications:</strong><br />- Industry <br />- Building construction</p>n<p><br /><strong>Моunting:</strong> To the terminals of the contactor and it is additionally clamped to its frame through a pin</p>n<p><strong>Standard:</strong> EN60947-1; EN60947-4-1; LVD; EMC</p>
