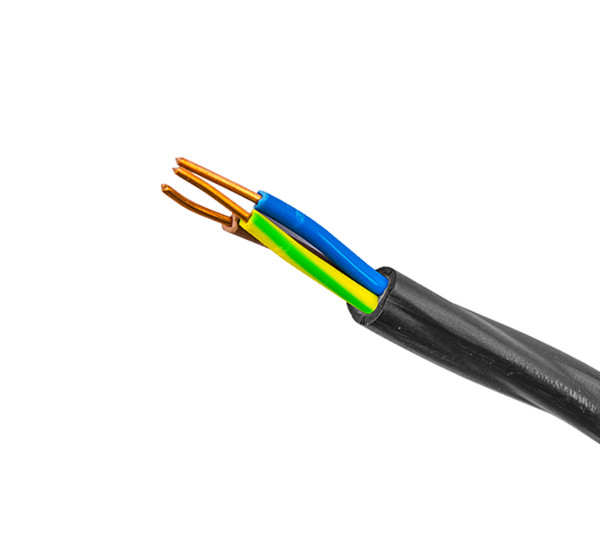

ELMARK 817039 CBT-C 3x2.5mm2 kábel fekete

<p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br /> - AC: 4kV/50 Hz.<br /> - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br /> - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br /> - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p><p>For transmission and distribution of electric power at construction of distribution<br />networks and installations with nominal voltage U0/U - 0.6/1kV and frequency of 50 Hz.<br />Suitable for fixed outdoor laying or indoors, in cable ducts, tunnels, shafts, excavations. <br />On request for UV and weather resistance, the cable is designed with appropriate sheath <br />resistance.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 16291-85<br />- Rated voltage: U0/U - 0.6/1kV<br />- Test voltage: <br />   - AC: 4kV/50 Hz.<br />   - DC: 12kV<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: 10D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1<br />- Sheath colour: gray, black</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br />   - Multi-core cable with cross-section from 1mm² to 16mm² - class 1 according to IEC 228<br />   - Multi-core cable with cross-section from 16mm² to 25mm² - class 2 according to IEC 228<br />   - Single-core cable with cross-section from 16mm² to 95mm² - class 2 according to IEC 228<br />- Insulation: PVC<br />- Sheath: PVC<br />- The cable is designed WITH or WITHOUT filling</p>n<p><strong>Description of wires shape:</strong><br />- RE - solid round <br />- RM - multi-core round<br />- SE - solid sector <br />- SM - multi-core sector<br />- RMV - multi-core round compacted</p>
