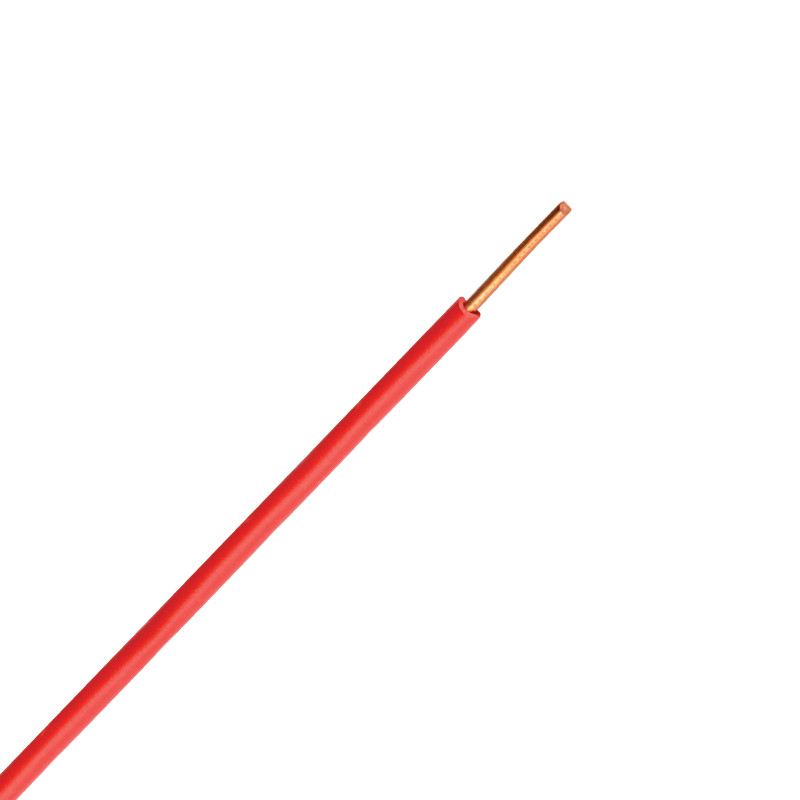

ELMARK 822005 H07V-U 2,5mm2 kábel

ELMARK 822005 H07V-U 2,5mm2 kábel
Energiaosztály 2023-
Listaár: 249 Ft
150 Ft
Díjmentes szállítás!
m Kosárba Kosárba
RAKTÁRKÉSZLET FEJLESZTÉS ALATT



ELMARK elektronikai katalógus 2026 1.rész



ELMARK elektronikai katalógus 2026 2.rész



ELMARK világítástechnikai katalógus 2026 1.rész



ELMARK világítástechnikai katalógus 2026 2.rész



ELMARK elektronikai katalógus 2025



ELMARK világítástechnikai katalógus 2025



- A kép illusztráció!



ELMARK elektronikai katalógus


ELMARK világítástechnikai katalógus


Részletek Kiegészítő termékek Adatok Vélemények
  • <p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br /> - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br /> - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br /> - H05V-U from 0.50mm² to 1.00mm²: 2000V<br /> - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p><p>For fixed installation in lighting networks, power and signal systems, <br />wiring in distribution boards, machines and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to DIN VDE 0281, part 3<br />- Rated voltage: <br />   - H05V-U from 0.50mm² to 1.00mm²: U0/U - 300/500V<br />   - H07V-U from 1.50mm² to 10mm²: U0/U - 450/750V<br />- Test voltage:<br />   - H05V-U from 0.50mm² to 1.00mm²: 2000V<br />   - H07V-U from 1.50mm² to 10mm²: 2500V<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br />   - For diameters up to 10mm - 10D <br />   - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class 1 according to DIN VDE 0295 (HD 383)<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green</p>
