Főkategória >Kábelek >MKH kábel H07V-K

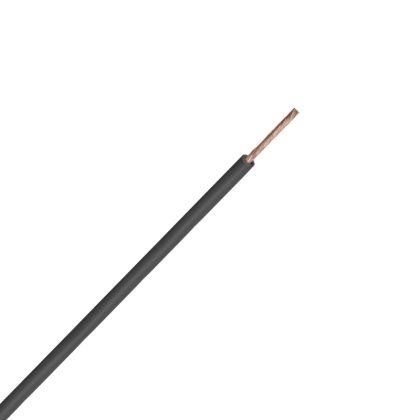

ELMARK 823008 H07V-K 6mm2 kábel

ELMARK 823008 H07V-K 6mm2 kábel
Energiaosztály 2023-
Listaár: 597 Ft
359 Ft
Díjmentes szállítás!
m Kosárba Kosárba
RAKTÁRKÉSZLET FEJLESZTÉS ALATT



ELMARK elektronikai katalógus 2026 1.rész



ELMARK elektronikai katalógus 2026 2.rész



ELMARK világítástechnikai katalógus 2026 1.rész



ELMARK világítástechnikai katalógus 2026 2.rész



ELMARK elektronikai katalógus 2025



ELMARK világítástechnikai katalógus 2025



- A kép illusztráció!



ELMARK elektronikai katalógus



ELMARK világítástechnikai katalógus



ELMARK 823008 H07V-K 6mm2 kábel általános leírása:

Mi a vezeték?
A vezeték egy olyan anyagból készült, általában hosszúkás alakú eszköz, amely elektromos áramot képes vezetni. A vezetők legfontosabb feladata, hogy az elektromos energiát az energiaforrástól a fogyasztóig biztonságosan eljuttassák.



A vezetők felépítése:
* Vezető anyag: Általában fémekből készülnek, mint például réz, alumínium vagy acél. Ezek az anyagok jól vezetik az elektromos áramot.
* Szigetelés: A vezető anyagot szigetelő anyag borítja, amely megakadályozza a rövidzárlatokat és az áramütés veszélyét. A szigetelés anyaga lehet például PVC, gumi vagy teflon.



A vezetők típusai:
* Egyenes vezetők: Egyszerű, egyenes alakú vezetékek, amelyeket általában belső vezetékezéshez használnak.
* Kábelek: Több, egymástól szigetelt vezetőt tartalmazó köteg. A kábelek gyakran árnyékolással is rendelkeznek, amely védi a vezetéket a külső elektromágneses zavaroktól.
* Buszvezetők: Nagy keresztmetszetű, merev vezetők, amelyek nagy áramok vezetésére alkalmasak.
* Levegővezetékek: Nyitott térben, oszlopokra felfüggesztett vezetők.
* Földelővezetők: A berendezéseket és a villanyhálózatot a földdel összekötő vezetők.



A vezetők jellemzői:
* Ellenállás: Az elektromos áram áramlásának ellenállása. Minél nagyobb az ellenállás, annál nagyobb feszültségre van szükség azonos áram eléréséhez.
* Vezetőképesség: Az ellenállás reciproka. Minél nagyobb a vezetőképesség, annál könnyebben áramlik az elektromos áram.
* Kereszmetszet: A vezető keresztmetszete határozza meg az áramvezetési képességét. Minél nagyobb a keresztmetszet, annál nagyobb áramot képes vezetni.
* Szigetelés vastagsága: A szigetelés vastagsága határozza meg a vezető feszültségtűrő képességét.



A vezetők alkalmazási területei:
* Épületvillamosság: Belső vezetékezés, világítás, elektromos készülékek csatlakoztatása.
* Ipar: Gépek, berendezések táplálása, vezérlés.
* Közlekedés: Villamosok, trolibuszok, elektromos autók.
* Telekommunikáció: Telefon-, internet- és adatátvitel.



A vezetők kiválasztásánál figyelembe veendő tényezők:
* Áramterhelhetőség: A vezetőnek el kell bírnia a rajta folyó áramot.
* Feszültségtűrő képesség: A vezetőnek ellen kell állnia a rákapcsolt feszültségnek.
* Környezeti hatások: A vezetőt olyan anyagból kell készíteni, amely ellenáll a környezeti hatásoknak (hő, nedvesség, vegyszerek).
* Mechanikai igénybevétel: A vezetőnek ellen kell állnia a mechanikai igénybevételnek (hajlítás, húzás).



Fontos tudni:
* A vezetőket mindig a vonatkozó szabványoknak megfelelően kell kiválasztani és telepíteni.
* Az elektromos munkákat szakemberre kell bízni.
* A hibásan telepített vagy sérült vezetékek tűz- és áramütés veszélyét hordozhatják.
Ha szeretne többet megtudni a vezetékekről, érdemes szakkönyveket vagy szakembereket felkeresni.



További információért keressen minket bizalommal: info@gazdafielectronic.hu
Részletek Kiegészítő termékek Adatok Vélemények
  • <p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br /> - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br /> - Cross-section from 0.20mm² to 1.00mm²: 2000V<br /> - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br /> - Flexing installation: -5°C to +50°C <br /> - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br /> - For diameters up to 10mm - 10D <br /> - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br /> - Cross-section up to 50mm² - class 5 according to BDS 904-84<br /> - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p><p>For wiring with small bending radii and higher requirements to the cable<br />flexibility, in machines, distributor boards and devices.</p>n<p><strong>Technical characteristics:</strong><br />- Manufactured according to BDS 4305-90<br />- Rated voltage: <br />   - Cross-section from 0.20mm² to 1.00mm²: U0/U - 300/500V<br />   - Cross-section from 1.50mm² to 120mm²: U0/U - 450/750V<br />- Test voltage: <br />   - Cross-section from 0.20mm² to 1.00mm²: 2000V<br />   - Cross-section from 1.50mm² to 120mm²: 2500V<br />- Insulation resistance at 70°C: min. 2x10¹° Ω.cm<br />- Maximum conductor temperature: +70°C<br />- Maximum conductor temperature at short circuit for 5 sec: +160°C<br />- Ambient temperature: <br />   - Flexing installation: -5°C to +50°C <br />   - Static installation: -30°C to +50°C<br />- Minimum temperature during unstallation: -5°C<br />- Minimum bending radius during installation: <br />   - For diameters up to 10mm - 10D <br />   - For diameters over 10mm - 15D<br />- D - cable height<br />- Flame test: flame retardant BDS IEC 332-1</p>n<p><strong>Construction:</strong><br />- Copper conductors<br />- Flexibility class:<br />   - Cross-section up to 50mm² - class 5 according to BDS 904-84<br />   - Cross-section over 50mm² - class 4 according to BDS 904-84<br />- Insulation: PVC</p>n<p><strong>Insulation colour:</strong><br />- white, gray, black, blue, brown, red, yellow-green, green, yellow</p>
